Ceiling Hanger VT-MSH

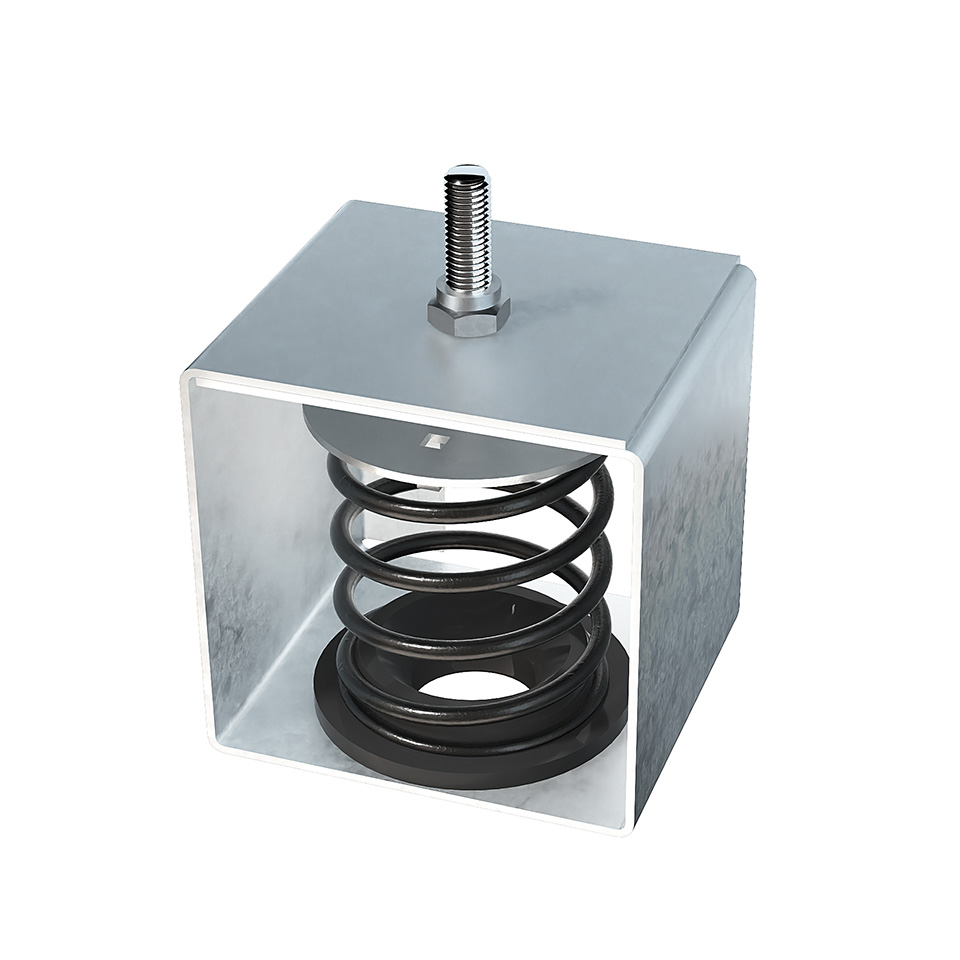

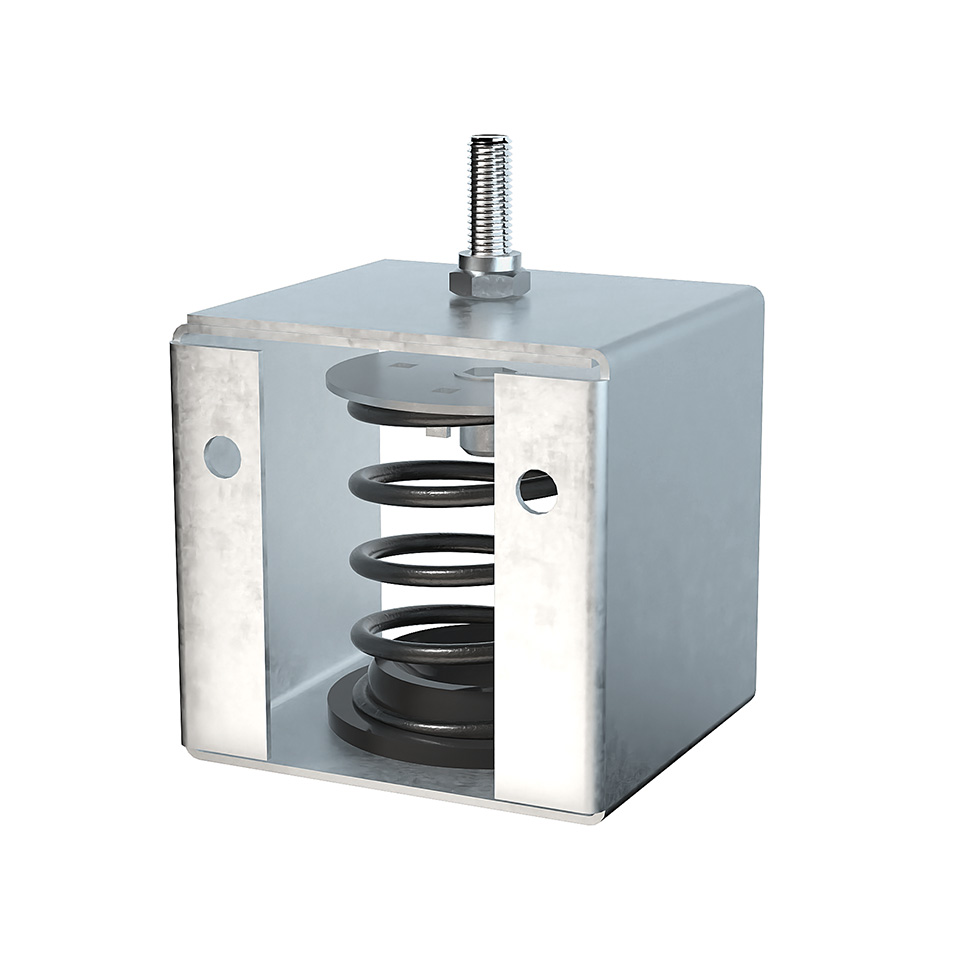

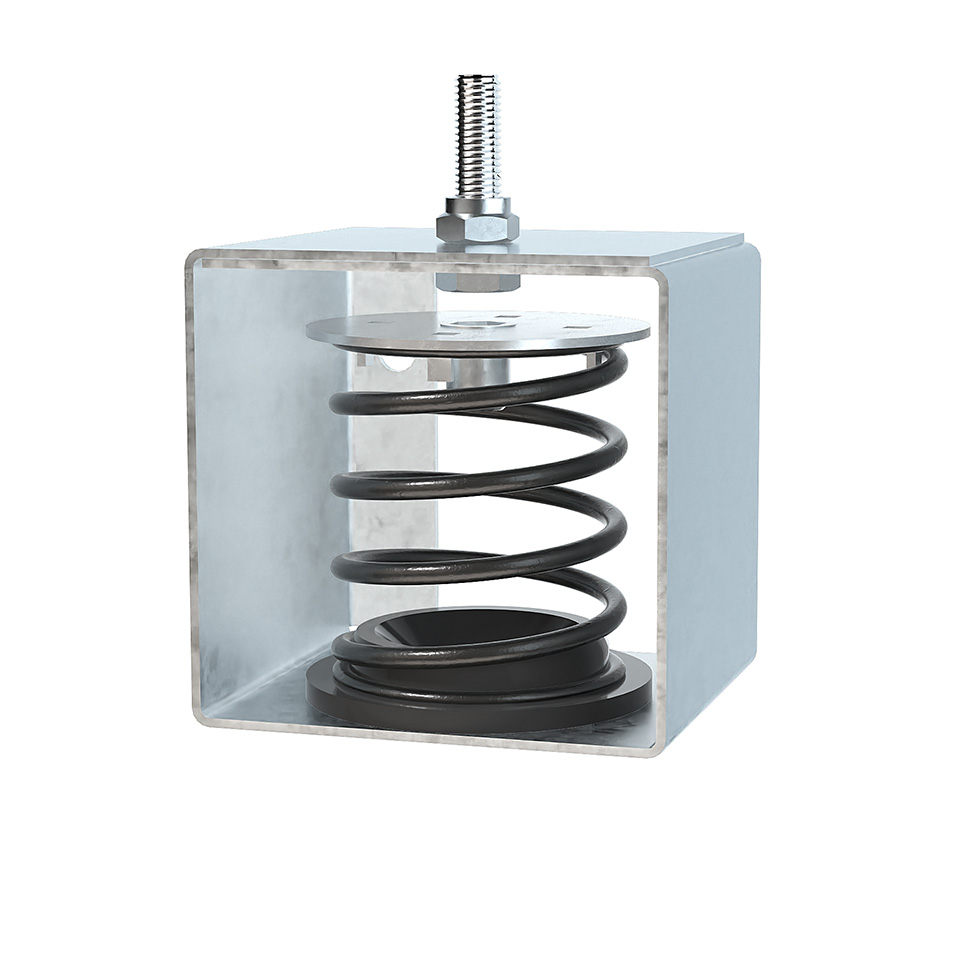

The VT-MSH is a vibration isolation hanger, designed for both top or side mounting. The spring isolator has a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz. It can be used together with Vibratec click-on hangers and profiles for suspended ceilings, or as it is for hanging equipment such as speakers, pipes or ventilation.
Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz. Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz. Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz. Vibratecs own ceiling hanger with a spring isolator is available with five different springs with a load range from 5-7 kg up to 20-30 kg with the stiffest spring and a natural frequency of 4-5 Hz.

Product Applications

Perfect for suspending equipment:

  • Speakers
  • Pipes
  • Ventilation

Note

For beam structures, back mounting of the hangers could reduce the total height of the system.

Technical Specifications

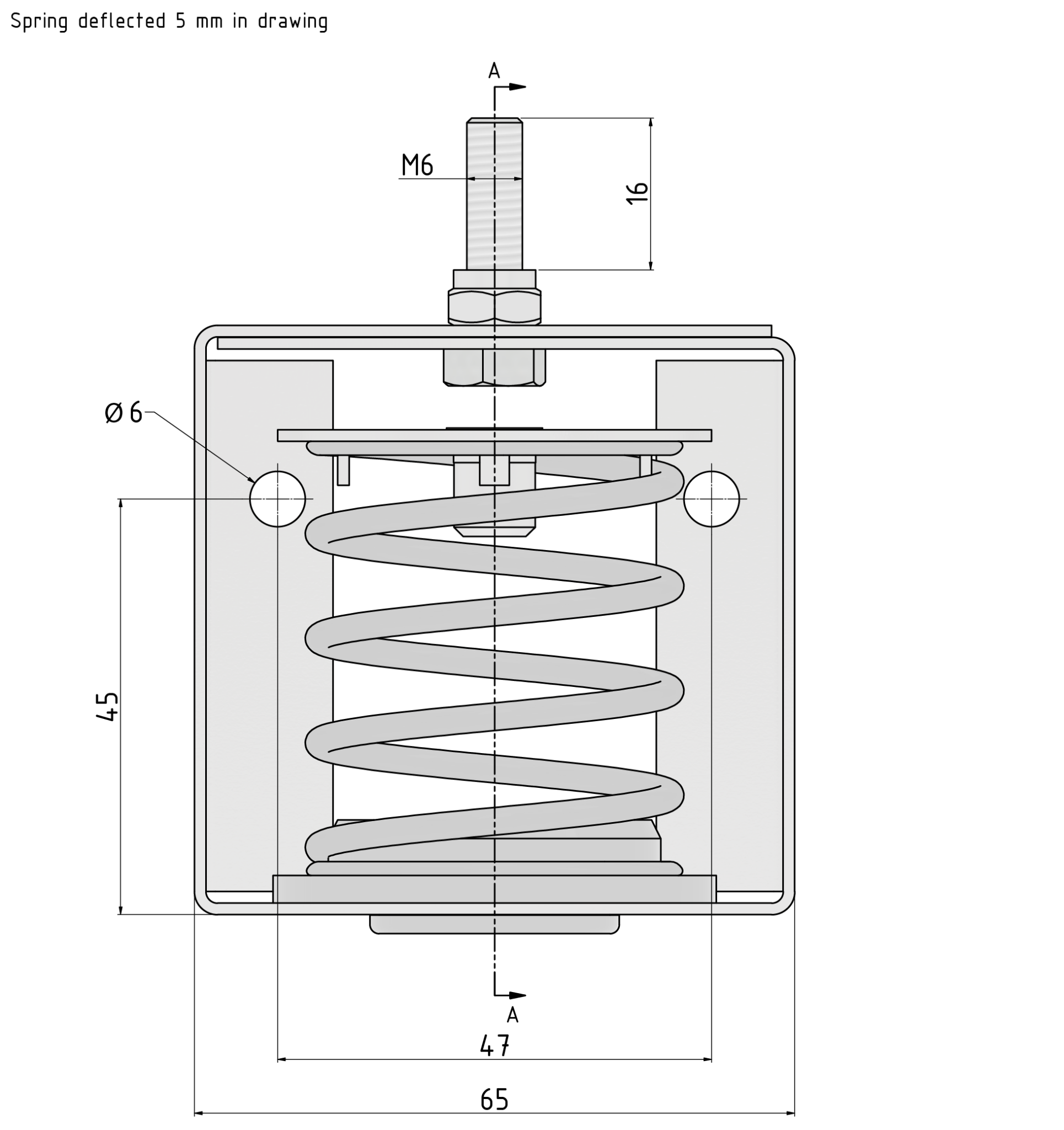

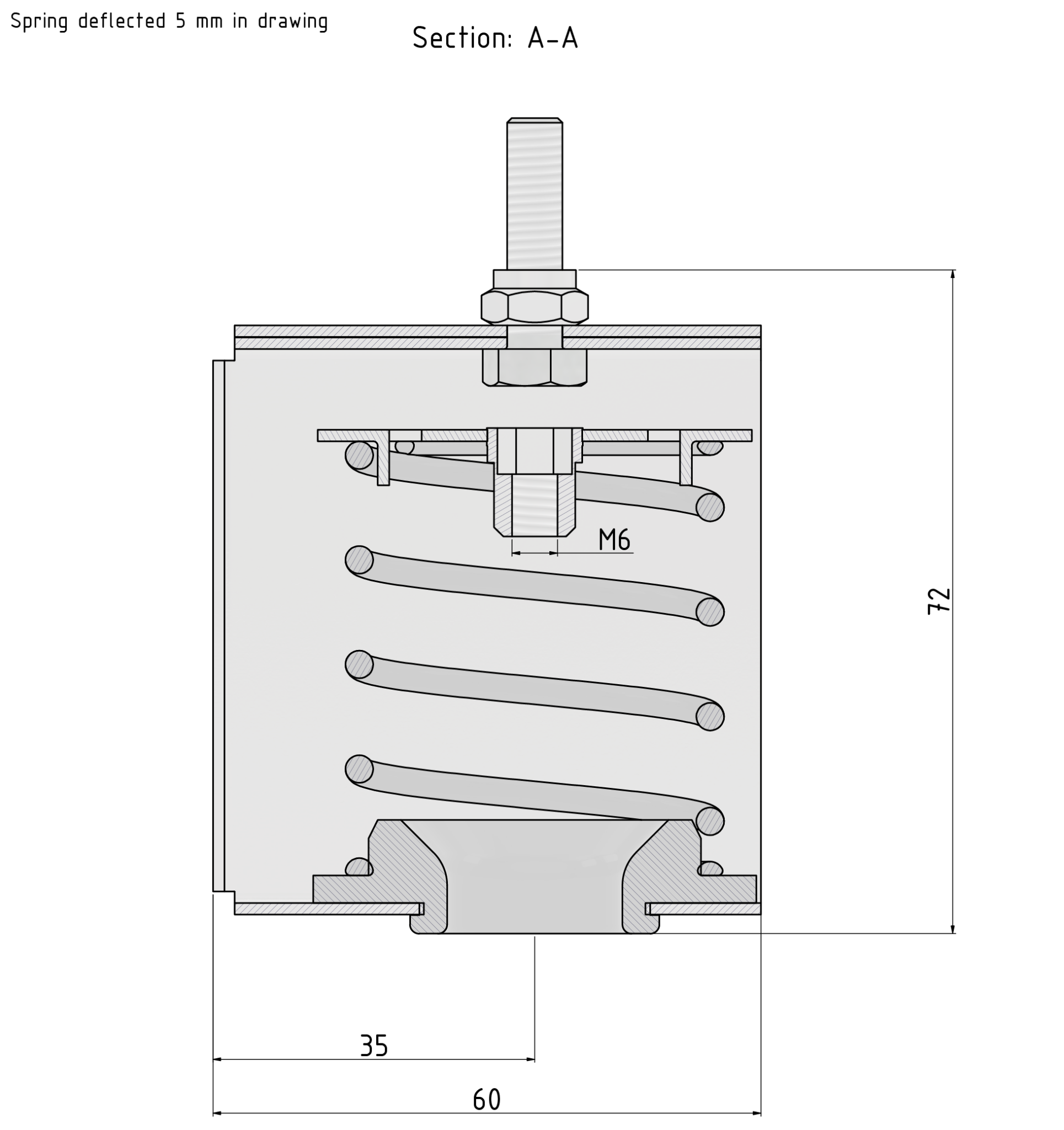

Front view technical drawing of Vibratec's ceiling hanger VT-MSH. A spring isolator with a natural frequency between 4-5 Hz. Section A-A technical drawing of Vibratec's ceiling hanger VT-MSH. A spring isolator with a natural frequency between 4-5 Hz.

VT-MSH-technical-specification ceiling-hanger-vt-msh-technical-specification.xlsx

Sheet1

Type Load (kg) Spring rate (N/mm) Fn (Hz)
VT-MSH-S-1 5 - 7 6 4 - 5
VT-MSH-S-2 6 - 9 7.6
VT-MSH-S-3 9 - 13 10.7
VT-MSH-S-4 13 - 20 17.5
VT-MSH-S-5 20 - 30 27
VT-MSH-S-6 30 - 50 39.7
